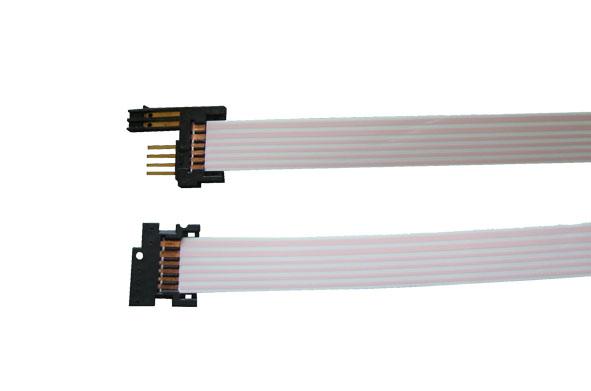

Highly flexible flat cables(spring clocking ffc cable)are an efficient and easy to use system for PCB-to-PCB connections, which has advances everywhere it is claimed to have a low weight and a high packing density at small packaging space. The flat construction qualifies them for a wide field of applications.

Because of customer specific configuration flexible flat cables can easily be adapted to the desired application: Connection type, length and conductor quantity are selectable and adapted to customers request. Our online configurator gives you an overview of the FFC-variants which we can produce for you.

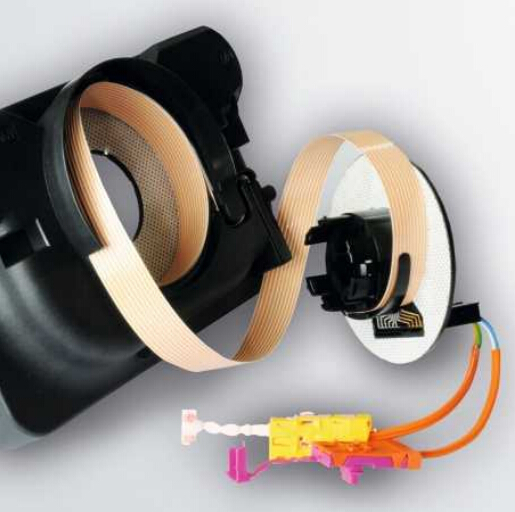

The FFC cables are installed, among other things in clock spring cartridges in the steering column control module of the automotive industry. Because of the flexibility and weight savings, the flat conductor technology is here to stay in the areas of airbag, interior and infotainment application.

In addition to supplying the FFC for automotive, industrial and consumer applications flexible connections is also assembling complete clock spring modules. Here, the flexible flat cable will be completed with connector systems and lead frames by use of resistance welding and injection molding processes.

Besides the standard “long-band” technology with copper conductors up to 120 microns, also produces steering wheel modules in loop-back-technology (short band technology) This loop-back technology use smaller bending radius and much thinner wires with 35 microns. Therefore this has higher demands on the production technology.
